Buchholz Relay work and gas accumulation

The Buchholz relay is a protective device used in oil-immersed transformers to detect internal faults.

It is installed in the pipe connecting the transformer tank to the conservator.

When a fault occurs inside the transformer, it can generate gas, which accumulates in the relay. The presence of gas in the Buchholz relay is a strong indicator of an internal fault, and the type and quantity of gas can provide clues about the nature of the fault.

Common Causes of Gas Accumulation in the Buchholz Relay:

1. Insulation Breakdown:

   - Faults such as short circuits or arcing between windings or between windings and the core can cause insulation to break down, producing gases like hydrogen (H₂), methane (CH₄), and acetylene (C₂H₂).

2. Overheating:

   - Localized overheating due to poor connections, overloading, or circulating currents can decompose the transformer oil, generating gases such as methane (CH₄) and ethylene (C₂H₄).

3. Core Faults:

   - Faults in the core, such as shorted laminations, can cause localized heating and gas generation.

4. Partial Discharge:

   - Partial discharges within the transformer can produce hydrogen (H₂) and small amounts of methane (CH₄).

5. Oil Degradation:

   - Aging or contamination of the transformer oil can lead to gas formation even without a major fault.

Actions to Take When Gas Accumulates in the Buchholz Relay:

1. Alarm Stage:

   - If the gas accumulation is small, the Buchholz relay will typically trigger an alarm. The transformer should be inspected, and a gas sample should be taken for analysis (Dissolved Gas Analysis or DGA) to determine the cause.

2. Trip Stage:

   - If the gas accumulation is significant, the relay may trip the transformer to prevent further damage. Immediate investigation and repair are required.

3. Gas Analysis:

   - Perform a DGA to identify the types and concentrations of gases. This helps diagnose the fault type (e.g., thermal, electrical, or corona discharge).

4. Inspection and Repair:

   - Inspect the transformer internally to locate and repair the fault. This may involve rewinding, repairing insulation, or replacing damaged components.

5. Preventive Measures:

   - After repair, ensure proper maintenance, monitor loading conditions, and perform regular oil testing to prevent future faults.

Common Gases and Their Significance:

- Hydrogen (H₂): Indicates partial discharge or arcing.

- Methane (CH₄): Suggests overheating or oil degradation.

- Acetylene (C₂H₂): Indicates high-energy arcing or severe faults.

- Ethylene (C₂H₄): Associated with thermal faults.

- Carbon Monoxide (CO) and Carbon Dioxide (CO₂): Indicate cellulose (paper) insulation degradation.

If gas accumulation is detected, it is critical to act promptly to prevent further damage to the transformer and ensure the reliability of the power system.

Why does Japan use both 50hz and 60hz in it's power system?

Why does Japan use both 50hz and 60hz in it's power system?

Japan uses both 50 Hz and 60 Hz electrical systems due to historical reasons and the influence of different foreign technologies during the late 19th and early 20th centuries.

Historical Background:

1. Early Development of Electrical Systems:

   - In the late 1800s, Japan began adopting electrical systems as part of its modernization efforts during the Meiji Restoration.

   - Different regions of Japan imported electrical equipment from different countries, which used different frequencies.

2. Influence of Foreign Companies:

   - Tokyo (Eastern Japan): In 1895, Tokyo Electric Light Company purchased generators from AEG (a German company), which operated at 50 Hz. This led to the adoption of the 50 Hz system in eastern Japan, including Tokyo and surrounding areas.

   - Osaka (Western Japan): Around the same time, Osaka Electric Lamp Company purchased generators from General Electric (an American company), which operated at 60 Hz. This led to the adoption of the 60 Hz system in western Japan, including Osaka, Kyoto, and Nagoya.

Geographic Division:

- 50 Hz Region: Eastern Japan, including Tokyo, Yokohama, Tohoku, and Hokkaido.

- 60 Hz Region: Western Japan, including Osaka, Kyoto, Nagoya, Hiroshima, and Fukuoka.

Challenges:

- The dual-frequency system creates challenges for nationwide electrical infrastructure, as devices and equipment must be designed to accommodate both frequencies.

- Power transfer between the two regions requires frequency conversion facilities, which add complexity and cost.

Why It Persists:

- The cost and effort required to unify the system nationwide have been deemed too high, so both frequencies continue to coexist.

- Modern technology, such as frequency converters and universal appliances, has mitigated many of the practical issues.

In summary, Japan's use of both 50 Hz and 60 Hz systems is a legacy of its early adoption of foreign electrical technologies, and the division has persisted due to the practical challenges of standardizing the entire country.

Torque and Cylinder Head Bolts

🔧 Torque and Cylinder Head Bolts: A Key to Engine Performance

⚙️ What is Torque?

Torque is a twisting force that determines the rotational power of an engine. It is typically measured in pound-feet (lb-ft).

⚙️ Why is Torque Important?

Applying the correct torque to cylinder head bolts ensures proper sealing of the combustion chamber, lubricant and coolant passages, and prevents air leaks. This is essential for maintaining engine efficiency and durability.

⚙️ How to Properly Torque Cylinder Head Bolts?

Torquing cylinder head bolts requires following a specific sequence, tightening values, and angular measurements. Precise adherence to these steps prevents leaks and bolt damage.

🛠️ Tools Required

Torque Wrench: Used for applying the correct torque.

Goniometer: Used for measuring angular tightening.

🔩 Bolts & Cylinder Head

Cylinder head bolts (also called Torque-to-Yield or Angular Tightening bolts) are single-use only. Reusing or over-tightening them can cause an improper seal or bolt failure.

The cylinder head is a crucial engine component that manages airflow, fuel injection, and houses valves and injectors. It contains more moving parts than any other part of the engine!

Proper torque application is key to ensuring a smooth and reliable engine performance.

Do MCB trigger overload because of lightning strike?

MCB & Lightning Strike

Do MCB trigger overload because of lightning strike?

Miniature Circuit Breakers (MCBs) are designed to protect electrical circuits from overloads and short circuits.

However, they are not specifically designed to protect against the effects of lightning strikes. Here's how MCBs and lightning strikes interact:

1. Overload Protection:

MCBs trip when the current flowing through them exceeds their rated capacity for a certain period. A lightning strike typically causes a very brief but extremely high surge of current, which is not the same as a sustained overload.

Therefore, an MCB might not trip due to a lightning strike because the duration of the surge is too short to trigger the overload mechanism.

2. Short Circuit Protection:

MCBs also trip in the event of a short circuit, which occurs when there is a sudden drop in resistance, causing a massive current flow. If a lightning strike causes a short circuit (e.g., by damaging insulation or creating an arc), the MCB will likely trip to protect the circuit.

3. Surge Protection:

Lightning strikes can induce high voltage surges in electrical wiring. While MCBs can handle some level of surge, they are not designed to protect against the extremely high voltages associated with direct or nearby lightning strikes. For this purpose, surge protection devices (SPDs) are recommended.

SPDs are specifically designed to divert excess voltage to the ground, protecting connected equipment and circuits.

In summary, while an MCB might trip if a lightning strike causes a short circuit, it is not designed to handle the high-energy surges typically associated with lightning.

For comprehensive protection against lightning strikes, additional surge protection devices should be installed in the electrical system.

Thermoelectric Generators: Principles, Materials and Applications

Key learnings:

• Thermoelectric Generator Definition: A thermoelectric generator (TEG) is a device that converts heat energy into electrical energy using the Seebeck effect, which occurs when there is a temperature difference between two different conductors.

• Working Principle: TEGs work by creating a temperature difference across a thermoelectric module, generating an electric current that can power an external load or charge a battery

Common Materials: Common thermoelectric materials include bismuth telluride for low temperatures, lead telluride for medium temperatures, and skutterudites for high temperatures.

• Applications: TEGs are used for power generation from waste heat, cooling electronic devices, and powering remote devices with radioisotopes or solar heat.

• Challenges and Future Directions: TEGs face challenges like low efficiency and high cost, but future research aims to find new materials and develop advanced systems to improve performance.

A thermoelectric generator (TEG) is a device that converts heat energy into electrical energy using the Seebeck effect. The Seebeck effect is a phenomenon that occurs when a temperature difference exists between two different conductors or a circuit of conductors, creating an electric potential difference. TEGs are solid-state devices that have no moving parts and can operate silently and reliably for long periods of time. TEGs can be used to harvest waste heat from various sources, such as industrial processes, automobiles, power plants, and even human body heat, and convert it into useful electricity. TEGs can also be used to power remote devices, such as sensors, wireless transmitters, and spacecraft, by using radioisotopes or solar heat as the heat source.

How Does a Thermoelectric Generator Work?

A thermoelectric generator consists of two main components: thermoelectric materials and thermoelectric modules.

Thermoelectric materials are materials that show the Seebeck effect, generating an electric voltage when there is a temperature difference. They are classified into two types: n-type and p-type. N-type materials have extra electrons, while p-type materials lack electrons. When connected in series with metal electrodes, these materials form a thermocouple, the basic unit of a thermoelectric generator.

A thermoelectric module is a device that contains many thermocouples connected electrically in series and thermally in parallel.

A thermoelectric module has two sides: a hot side and a cold side. When the hot side is exposed to a heat source and the cold side is exposed to a heat sink, a temperature difference is created across the module, causing a current to flow through the circuit. The current can be used to power an external load or charge a battery. The voltage and power output of a thermoelectric module depends on the number of thermocouples, the temperature difference, the Seebeck coefficient, and the electrical and thermal resistances of the materials.

The efficiency of a thermoelectric generator is defined as the ratio of electrical power output to heat input. This efficiency is limited by the Carnot efficiency, the maximum possible efficiency for any heat engine between two temperatures. The Carnot efficiency is given by:

ηCarnot=1−ThTc

Seebeck Power Generation Equation 1

where Tc is the temperature of the cold side, and Th is the temperature of the hot side.

The actual efficiency of a thermoelectric generator is much lower than the Carnot efficiency due to various losses such as Joule heating, thermal conduction, and thermal radiation. The actual efficiency of a thermoelectric generator depends on the figure of merit (ZT) of the thermoelectric materials, which is a dimensionless parameter that measures the performance of a material for thermoelectric

applications. The figure of merit is given by:

ZT=κα2σT

Seebeck Power Generation Equation 2

where α is the Seebeck coefficient, σ is the electrical conductivity, κ is the thermal conductivity, and T is the absolute temperature.

The higher the figure of merit, the higher the efficiency of the thermoelectric generator. The figure of merit depends on both intrinsic properties (such as electron and phonon transport) and extrinsic properties (such as doping level and geometry) of the materials. The goal of thermoelectric materials research is to find or design materials that have a high Seebeck coefficient, high electrical conductivity, and low thermal conductivity, which are often conflicting requirements.

What are Some Common Thermoelectric Materials?

Thermoelectric materials can be classified into three categories: metals, semiconductors, and complex compounds.

Metals have high electrical conductivity but low Seebeck coefficient and high thermal conductivity, resulting in a low figure of merit. Metals are mainly used as electrodes or interconnects in thermoelectric modules.

Semiconductors have moderate electrical conductivity and Seebeck coefficient but high thermal conductivity, giving them a moderate figure of merit. They can be doped to create n-type or p-type materials with varying carrier concentrations and mobilities. Semiconductors are commonly used as thermoelectric materials for low-temperature applications (below 200°C).

Complex compounds have low electrical conductivity but a high Seebeck coefficient and low thermal conductivity, resulting in a high figure of merit. Complex compounds are usually composed of multiple elements with different valence states and crystal structures, which create complex electronic band structures and phonon scattering mechanisms that enhance thermoelectric performance. Complex compounds are widely used as thermoelectric materials for high-temperature applications (above 200°C).

Bernoulli's principle in simple words

Bernoulli's Principle Explained Simply

Bernoulli's principle is a fundamental concept in fluid dynamics, named after the Swiss mathematician Daniel Bernoulli, who formulated it in the 18th century. It describes the behavior of a fluid (like air or water) in motion and explains how pressure, speed, and height are related in a flowing fluid. The principle is widely used in various fields, including aviation, engineering, and even everyday phenomena like the flow of water through a pipe or the lift of an airplane wing.

Key Idea of Bernoulli's Principle

At its core, Bernoulli's principle states that as the speed of a fluid increases, its pressure decreases, and vice versa. This happens because of the conservation of energy in a fluid system. In simpler terms, when a fluid flows faster, it loses some of its pressure, and when it slows down, the pressure increases.

Bernoulli's principle is often expressed as the total energy (pressure energy, kinetic energy, and potential energy) in a fluid remains constant along a streamline (a path followed by a fluid particle).

1. Pressure Energy:

   - This is the energy due to the pressure exerted by the fluid. High pressure means the fluid is pushing hard against its surroundings.

2. Kinetic Energy:

   - This is the energy due to the motion of the fluid. Faster-moving fluids have more kinetic energy.

3. Potential Energy:

   - This is the energy due to the height of the fluid. Fluids at higher elevations have more potential energy.

Real-Life Examples

1. Airplane Wings (Lift):

   - The shape of an airplane wing (airfoil) is designed so that air flows faster over the top surface and slower underneath. According to Bernoulli's principle, the faster-moving air on top creates lower pressure, while the slower-moving air below creates higher pressure. This pressure difference generates lift, allowing the plane to fly.

2. Venturi Effect:

   - When fluid flows through a narrow section of a pipe, its speed increases, and its pressure decreases. This is called the Venturi effect. It’s used in carburetors (in cars) to mix air and fuel efficiently.

3. Sailing Boats:

   - The sails of a boat are curved, causing wind to move faster on one side and slower on the other. This creates a pressure difference that propels the boat forward.

4. Shower Curtain:

   - When you turn on the shower, the fast-moving water and air inside the shower reduce the pressure. The higher pressure outside pushes the shower curtain inward, making it cling to you.

5. Spray Bottles:

   - When you squeeze the trigger of a spray bottle, air flows quickly over the top of a tube, reducing pressure. The higher pressure in the liquid forces it up the tube and out as a spray.

Why Does This Happen?

Bernoulli's principle is a result of the conservation of energy. In a fluid, energy can be transferred between pressure, speed, and height, but the total energy remains constant. When a fluid speeds up, it uses some of its pressure energy to increase its kinetic energy, causing the pressure to drop. Similarly, when a fluid slows down, its kinetic energy is converted back into pressure energy.

Limitations of Bernoulli's Principle

While Bernoulli's principle is incredibly useful, it has some limitations:

- It assumes the fluid is incompressible.

(density doesn’t change), which is true for liquids like water but not always for gases like air.

- It assumes steady flow (no turbulence) and no friction (viscosity is ignored).

- It applies only along a single streamline in the fluid.

Bernoulli vs. Newton

Bernoulli's principle is often contrasted with Newton's third law of motion, especially in explaining lift on an airplane wing. While Bernoulli's principle focuses on pressure differences, Newton's third law explains lift as a reaction force to the wing pushing air downward. Both explanations are correct and complement each other.

Practical Applications

1. Aerodynamics:

   - Engineers use Bernoulli's principle to design aircraft, cars, and even sports equipment like golf balls to optimize performance.

2. Plumbing:

   - The principle helps in designing pipes and pumps to ensure efficient fluid flow.

3. Weather:

   - It explains how wind patterns and pressure differences create weather phenomena like storms.

4. Medical Devices:

   - Venturi masks use Bernoulli's principle to mix oxygen with air for patients needing respiratory support.

Fun Experiment to Demonstrate Bernoulli's Principle

You can try this at home:

1. Hold a piece of paper by its edge so it hangs down.

2. Blow air horizontally across the top of the paper.

3. Observe how the paper lifts upward.

This happens because the fast-moving air on top reduces the pressure, while the higher pressure underneath pushes the paper up.

Conclusion

Bernoulli's principle is a simple yet powerful concept that explains how fluids behave under different conditions. It connects pressure, speed, and height in a fluid and has countless applications in science, engineering, and everyday life.

Whether you're flying in an airplane, using a spray bottle, or just taking a shower, Bernoulli's principle is at work, making things happen the way they do.

Electrical Conduit Installation

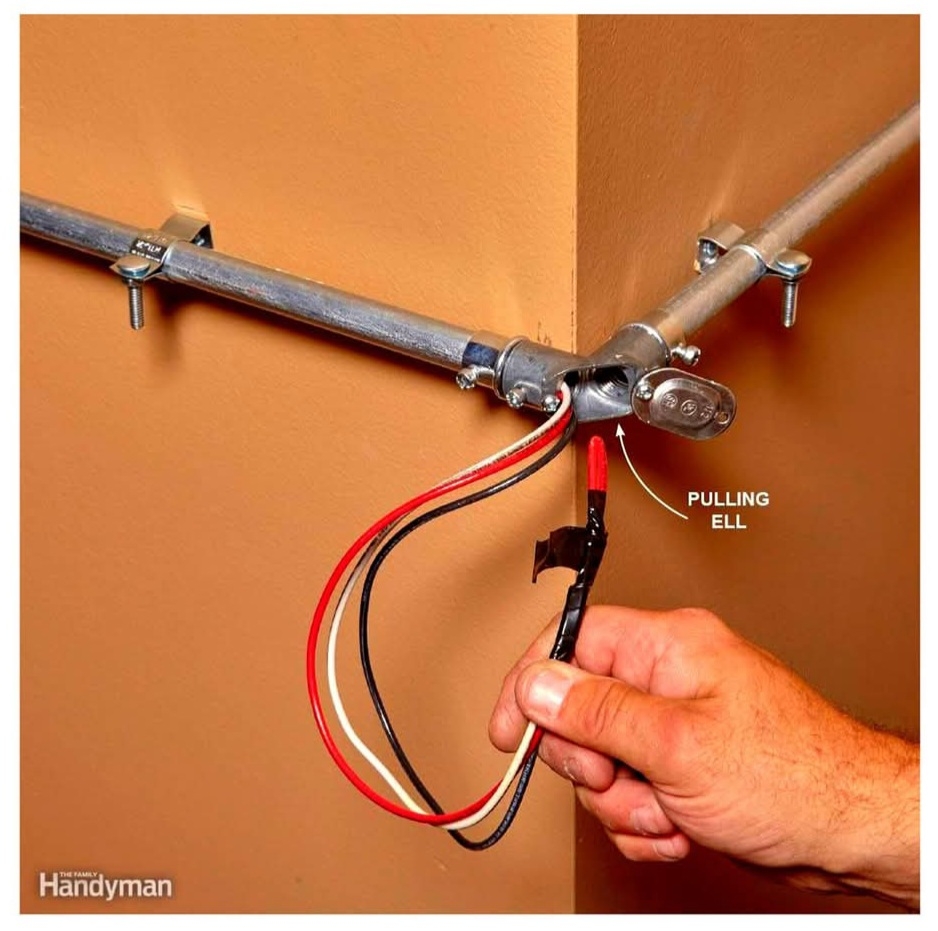

The installation of an electrical conduit and wiring, specifically focusing on the use of a pulling ell to facilitate wire pulling around a corner.

It's presented as a close-up photograph, likely for educational or informational purposes, possibly focusing on DIY electrical projects.

Key Elements and Descriptions:

▪️ Electrical Conduit: A section of metal electrical conduit is shown, running horizontally along a wall and then making a 90-degree bend.

▪️ Pulling Ell: A fitting labeled "PULLING ELL" is attached to the end of the conduit at the bend. This fitting allows for easier wire pulling around the corner.

▪️ Electrical Wiring: Three electrical wires (black, white, and red) are shown being pulled through the conduit. The ends of the wires are visible, and the person's hand is holding them, guiding them through the conduit.

▪️ Hand: A person's hand is visible, holding the wires and demonstrating the action of pulling them through the conduit.

▪️ Wall Surface: A portion of a wall is visible in the background, providing context for the installation. The wall appears to have a textured surface.

▪️ Metal Fasteners: Metal fasteners are used to secure the conduit to the wall.

Key Takeaways and Interpretations:

▪️ Conduit Installation: The image demonstrates the proper installation of electrical conduit and the use of a pulling ell to facilitate wire pulling.

▪️ Wire Pulling Technique: The image shows the process of manually pulling wires through a conduit, highlighting the importance of using appropriate fittings and techniques.

▪️ DIY Focus: The "Handyman" text and "DIY Electrical Wiring" branding clearly target DIY enthusiasts who are interested in learning about home electrical projects.

▪️ Educational or Informational Purpose: The clear photograph and focus on the specific task suggest an educational or informational purpose, possibly for training materials or online resources.

▪️ Practical Application: The image provides a tangible example of how electrical conduit and wiring are installed in a real-world scenario.
